PackageCeramic
Resistance40kR
Voltage Rating3.595kV
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications
Ohmite D175K40K technical specifications.
General
Package/Case
Ceramic
Depth
28.6mm
Diameter
0.752inch
Length
215.9mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
175W
Mount
Chassis Mount, Bolt
Package Quantity
1
Packaging
Bulk
Resistance
40kR
Series
Dividohm®210
Termination
Lug
Tolerance
10%
Voltage Rating
3.595kV
Compliance
RoHS
Not Compliant
Datasheet
Ohmite D175K40K Datasheet
Download the complete datasheet for Ohmite D175K40K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

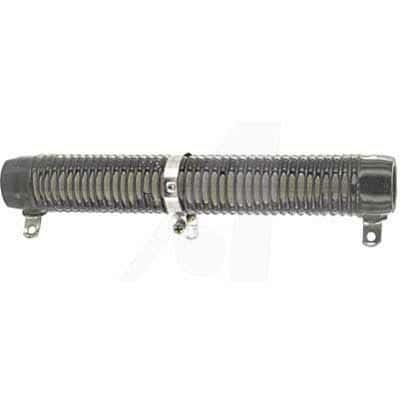

Product Images
