PackageRadial
Resistance5R
Voltage Rating625V
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications
Ohmite D25K5R0E technical specifications.
General
Package/Case
Radial
Depth
14.3mm
Diameter
14.3mm
Length
50.8mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
25W
Mount
Chassis Mount, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
5R
Resistance Tolerance
10%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
Dividohm®210
Termination
Lug
Tolerance
10%
Voltage Rating
625V
Voltage Rating (AC)
11V
DC Rated Voltage
625V
Compliance
RoHS
Compliant
Datasheet
Ohmite D25K5R0E Datasheet
Download the complete datasheet for Ohmite D25K5R0E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

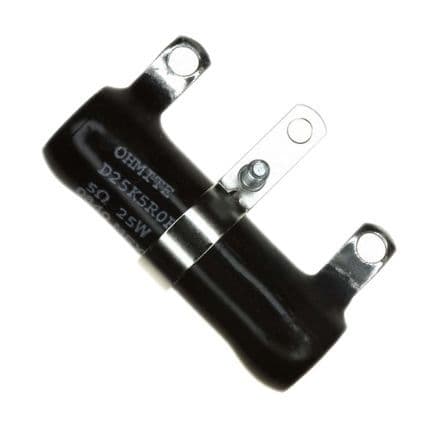

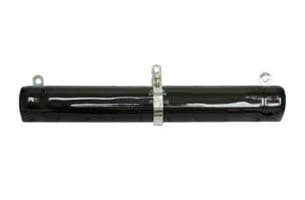

Product Images
