PackageRadial
Resistance25R
Voltage Rating1.625kV
MountingChassis Mount, Bolt
Quick Jump:
Technical Specifications
Ohmite D50K25R technical specifications.
General
Package/Case
Radial
Depth
14.3mm
Diameter
7.94mm
Lead Free
Contains Lead
Length
101.6mm
Material
Ceramic
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
50W
Mount
Chassis Mount, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
25R
Resistance Tolerance
10%
Resistor Type
Wirewound
RoHS Compliant
No
Series
Dividohm®210
Termination
Lug
Tolerance
10%
Voltage Rating
1.625kV
DC Rated Voltage
1.62kV
Compliance
RoHS
Not Compliant
Datasheet
Ohmite D50K25R Datasheet
Download the complete datasheet for Ohmite D50K25R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

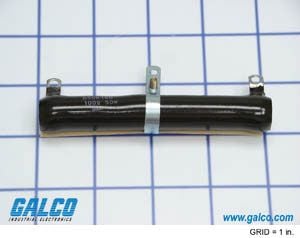

Product Images
