PackageRadial
Resistance25R
Voltage Rating1.625kV
MountingBrackets, Bolt
Quick Jump:
Technical Specifications
Ohmite L50J25RE technical specifications.
General
Package/Case
Radial
Depth
14.3mm
Diameter
14.3mm
Features
Flame Retardant Coating
Lead Free
Lead Free
Lead/Base Style
Solder
Length
101.6mm
Max Operating Temperature
350°C
Min Operating Temperature
25°C
Max Power Dissipation
50W
Mount
Brackets, Bolt
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
25R
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
270
Termination
Lug
Tolerance
5%
Voltage Rating
1.625kV
Voltage Rating (AC)
35V
DC Rated Voltage
1.62kV
Compliance
RoHS
Compliant
Datasheet
Ohmite L50J25RE Datasheet
Download the complete datasheet for Ohmite L50J25RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

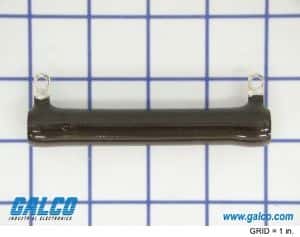

Product Images
