Through-hole fixed resistor with 47kR resistance and 5% tolerance. Features carbon composition technology, 500mW power dissipation, and a 350V voltage rating. Axial package with 3.8mm diameter, 10.3mm length, and 0.7mm lead diameter. Operates within a -70°C to 130°C temperature range and is RoHS compliant.
PackageAxial
Resistance47kR
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Ohmite OF473JE technical specifications.
General
Package/Case
Axial
Diameter
3.8mm
Lead Diameter
0.7mm
Lead Free
Lead Free
Lead Length
34.3mm
Lead Pitch
0.7mm
Length
10.3mm
Max Operating Temperature
130°C
Min Operating Temperature
-70°C
Max Power Dissipation
500mW
Mount
Through Hole
Number of Terminations
2
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
47kR
Resistance Tolerance
5%
Resistor Type
Carbon Composition
RoHS Compliant
Yes
Series
OF
Technology
CARBON COMPOSITION
Termination
Axial
Tolerance
5%
Voltage Rating
350V
DC Rated Voltage
350V
Wire/Cable Diameter
0.029inch
Compliance
RoHS
Compliant
Datasheet
Ohmite OF473JE Datasheet
Download the complete datasheet for Ohmite OF473JE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

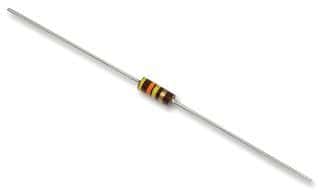

Product Images
