Technical Specifications
Ohmite RLS5R0E technical specifications.
General
| Current Rating | 5.48A |
| Diameter | 4inch |
| Length | 2inch |
| Max Power Dissipation | 150W |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Resistance | 5R |
| Resistance Tolerance | 10% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | RLS |
| Taper | Linear |
| Termination | Solder |
| Tolerance | 10% |
| Voltage Rating | 1.2kV |
| DC Rated Voltage | 1.2kV |
Compliance
| RoHS | Compliant |
Datasheet
Ohmite RLS5R0E Datasheet
Download the complete datasheet for Ohmite RLS5R0E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

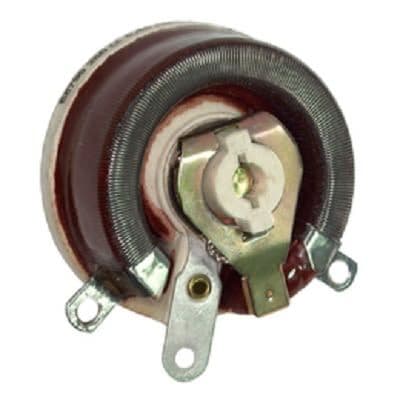

Product Images
