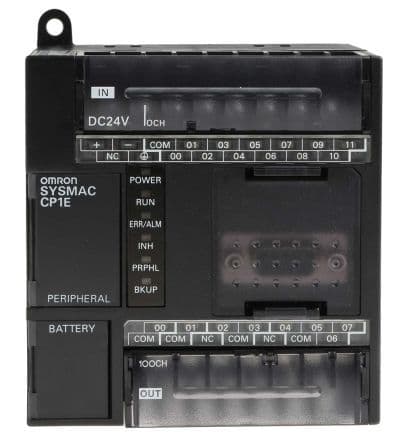

The CP1E-N20DR-D is a 24V 2A chassis mount relay with 20 points of I/O, including 12 inputs and 8 outputs. It operates within a temperature range of 0 to 55°C and is rated for IP20. The relay is part of the CP1E series and is designed for use in industrial automation and control applications. It has a weight of 0.816lb and measures 85mm in depth, 86mm in length, and 110mm in width. The CP1E-N20DR-D is a programmable logic controller with a screw termination and is compliant with industrial standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron CP1E-N20DR-D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 85mm |
| Input Type | PULSE |
| Length | 86mm |
| Manufacturer Series | CP1E |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | Chassis Mount, DIN Rail |
| Number of I/Os | 20 |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 24V |
| Output Current | 2A |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Series | CP1E |
| Termination | Screw |
| Weight | 0.816lb |
| Width | 110mm |
| RoHS | Compliant |
