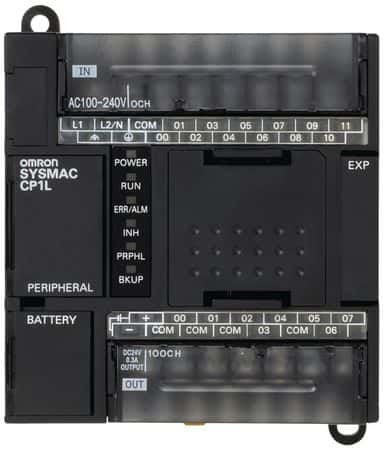

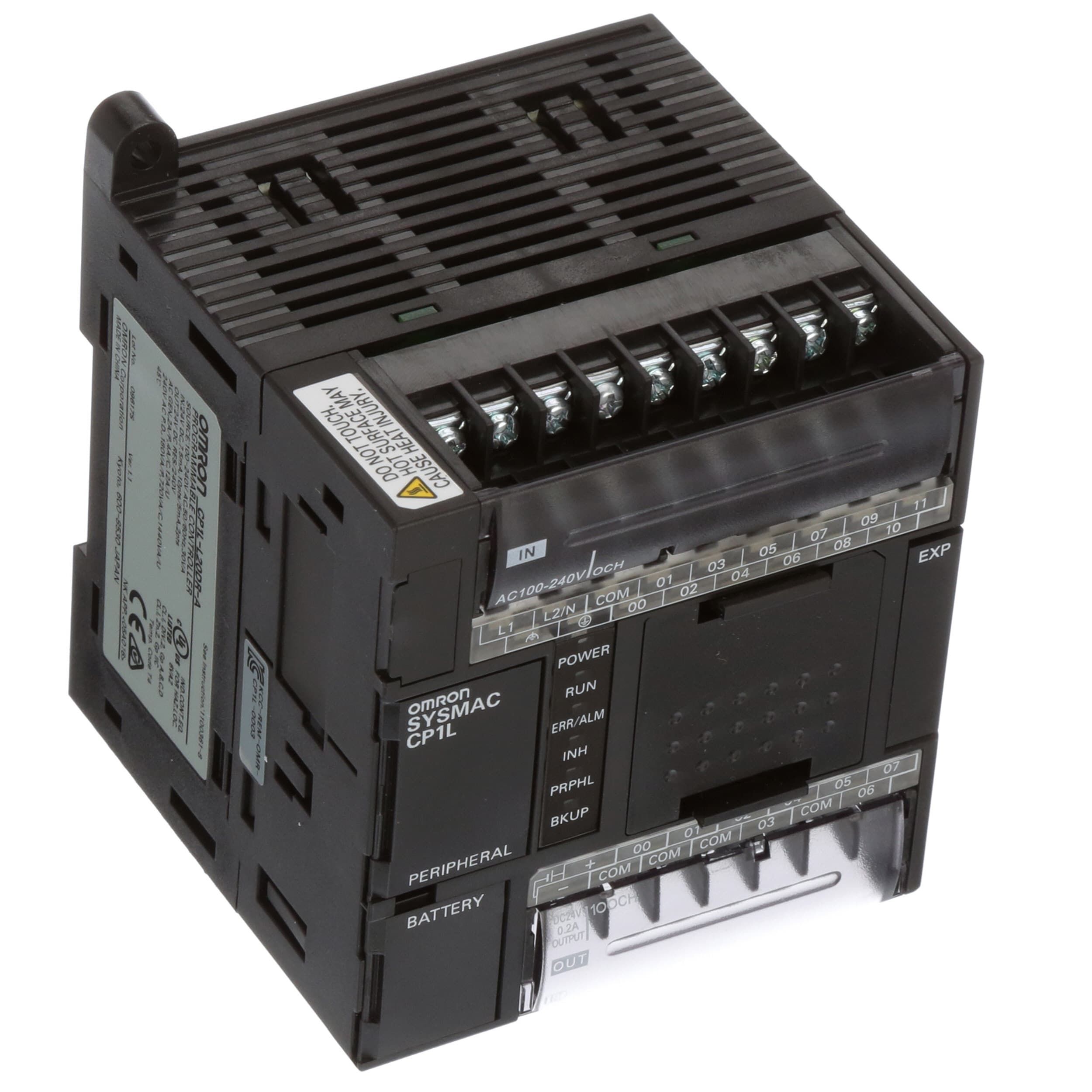

The Omron CP1L-L20DR-A is a 20-channel programmable logic controller module with 12 inputs and 8 outputs. It features 2A relay outputs and is designed for panel, chassis mount, or DIN rail installation. The module operates within a temperature range of 0°C to 55°C and is certified to CE standards for safety compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron CP1L-L20DR-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Package/Case | 100 |
| Depth | 85mm |
| Display Type | LCD |
| Input Type | DC |
| Length | 86mm |
| Manufacturer Series | CP1L |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | Panel, Chassis Mount, DIN Rail |
| Number of I/Os | 20 |
| Number of Inputs | 12 |
| Number of Outputs | 8 |
| Output Current | 2A |
| Output Type | RELAY |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP20 |
| Series | CP1L |
| Size | 85mm |
| Termination | Screw |
| Weight | 0.838lb |
| Width | 110mm |
| RoHS | Compliant |
