Omron
E5EC-QR4A5M-000

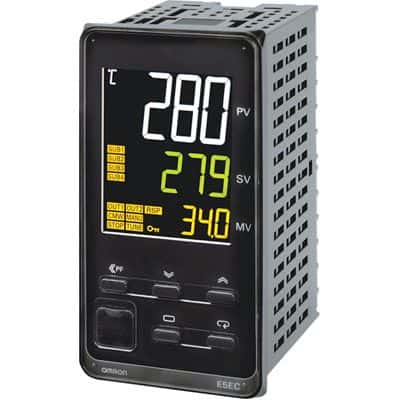

Temperature Process Controller, Thermocouple Input, Relay Output, LCD Display, Panel Mount
Storage96mm
MountingBrackets, Panel
Quick Jump:
Technical Specifications
Omron E5EC-QR4A5M-000 technical specifications.
General
Control Method
On/Off, Proportional (PID)
Display Type
LCD
Height
96mm
Input Type
UNIVERSAL
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Max Supply Voltage (AC)
240V
Min Supply Voltage (AC)
100V
Mount
Brackets, Panel
Number of Inputs
3
Number of Outputs
4
Operating Supply Voltage
240V
Output Type
Voltage, RELAY
Output Voltage
14.4V
Package Quantity
1
Ratings
IP66, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
E5EC
Size
96mm
Termination
Screw
Weight
0.463lb
Width
48mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E5EC-QR4A5M-000 Datasheet
Download the complete datasheet for Omron E5EC-QR4A5M-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
