Current Rating10A
MountingSocketable, Socket, Plug-In
Quick Jump:
Technical Specifications
Omron G2R-1-SN-AC120(S) technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Coil Current | 7.5mA |
| Coil Resistance | 7.28kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 120V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium |
| Current Rating | 10A |
| Depth | 13mm |
| Height | 35.5mm |
| Length | 29mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 15ms |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | G2RS |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Turn-On Delay Time | 15ms |
| Voltage Rating (AC) | 440V |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-1-SN-AC120(S) Datasheet
Download the complete datasheet for Omron G2R-1-SN-AC120(S) to view detailed technical specifications.
No datasheet is available for this part.

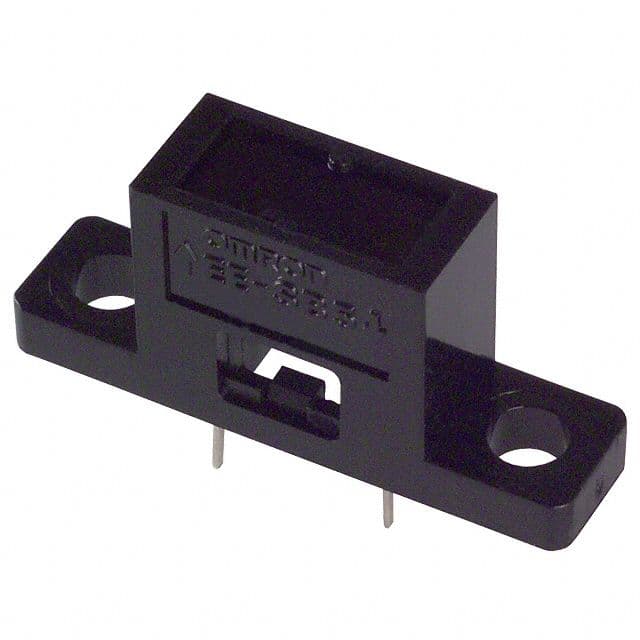

Product Images
