Omron
G2R-2A5DC
OMRON ELECTRONIC COMPONENTS G2R-2A 5DC General Purpose Relay, G2R Series, Power, Non Latching, DPST-NO, 5 VDC, 5 A
MountingPCB
Quick Jump:
Technical Specifications
Omron G2R-2A5DC technical specifications.
General
Application(s)
POWER
Coil Resistance
47R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
5A
Contact Material
Silver
Depth
13mm
Height
25.5mm
Length
29mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
Ratings
IP40
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
Yes
Switching Current
5A
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2A5DC Datasheet
Download the complete datasheet for Omron G2R-2A5DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

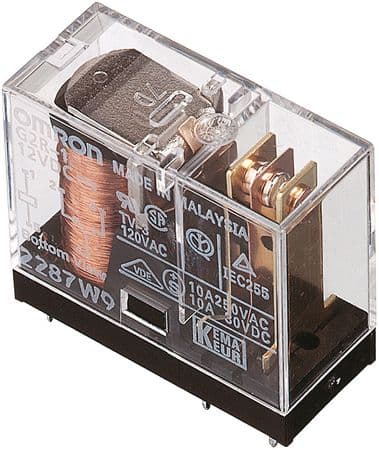

Product Images
