The Omron G6H-2F 5VDC is a surface-mount non-latching relay with a coil power rating of 140mW and a coil resistance of 178 ohms. It operates within a temperature range of -40°C to 85°C and features gold and silver contact materials. The relay has a contact current rating of 1A and a switching current of 1A. It is rated for IP67 and has a lead pitch of 2.54mm.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Omron G6H-2F 5VDC technical specifications.
General
| Package/Case | SMD/SMT |
| Coil Power | 140mW |
| Coil Resistance | 178R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Lead Pitch | 2.54mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Release Time | 2ms |
| Switching Current | 1A |
| Width | 9mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron G6H-2F 5VDC Datasheet
Download the complete datasheet for Omron G6H-2F 5VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

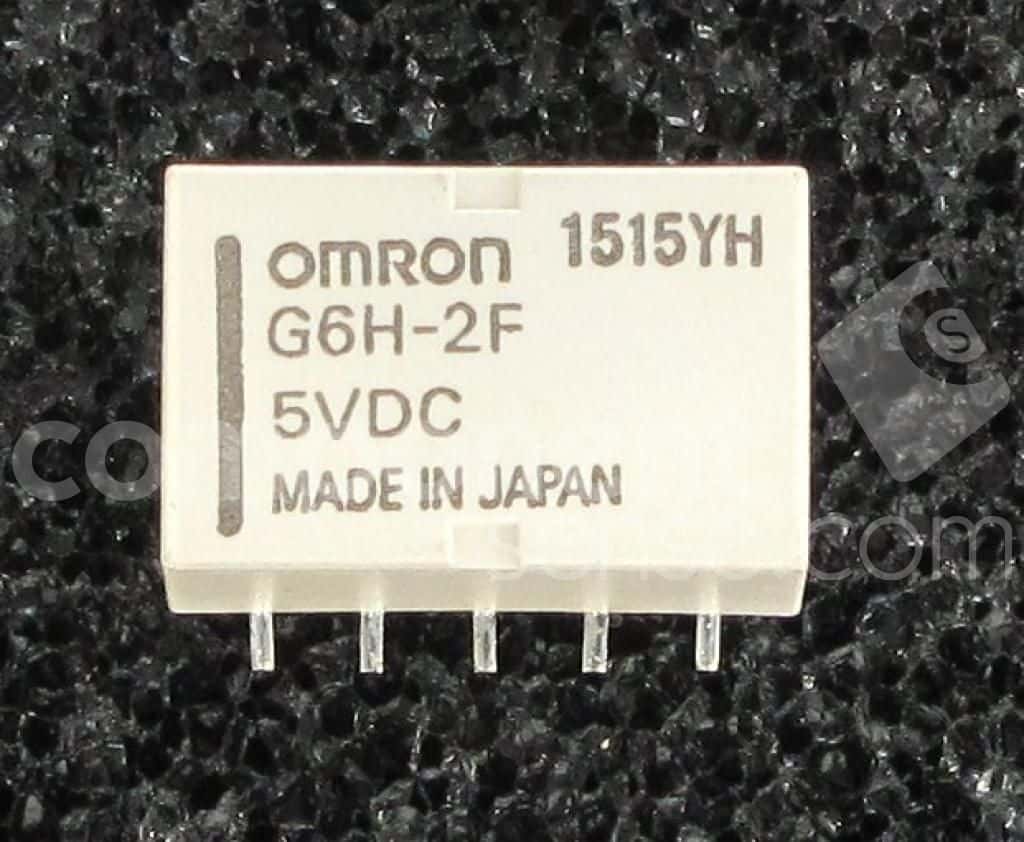

Product Images
