Technical Specifications
Omron G6RN-15VDC technical specifications.
General
Coil Current
44mA
Coil Resistance
114R
Coil Voltage (DC)
5V
Contact Material
Gold, Silver
Depth
10.5mm
Length
28.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Operate Time
6ms
Radiation Hardening
No
Ratings
IP54
Switching Current
5A
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron G6RN-15VDC Datasheet
Download the complete datasheet for Omron G6RN-15VDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

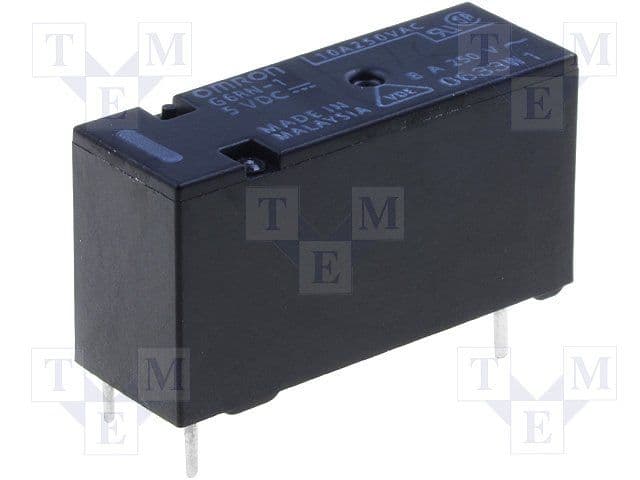

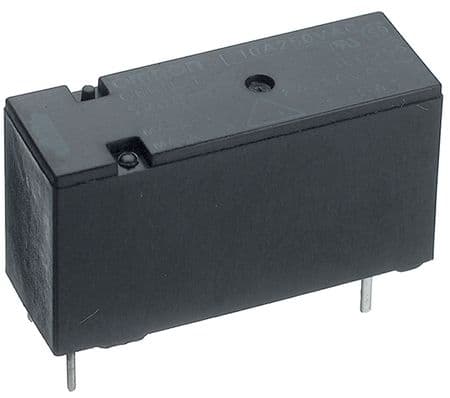

Product Images
