Technical Specifications
Omron GRT1-OD8-1 technical specifications.
General
| Approvals | CE, cULus |
| Package/Case | Module |
| Depth | 74mm |
| Input Current | 4A |
| Length | 84mm |
| Manufacturer Series | GRTI |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | DIN Rail |
| Number of Outputs | 8 |
| Output Current | 500mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | GRT1 |
| Termination | Screw |
| Weight | 0.177lb |
| Width | 15mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron GRT1-OD8-1 Datasheet
Download the complete datasheet for Omron GRT1-OD8-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

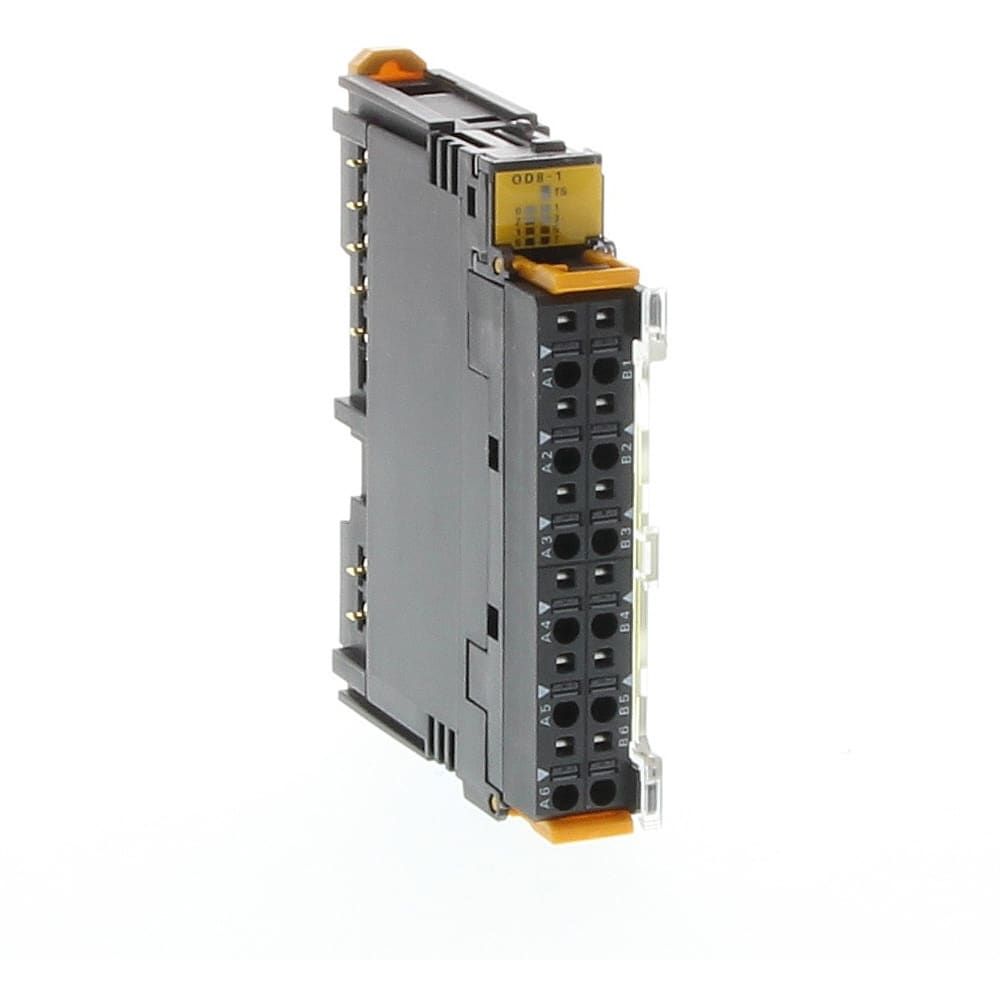

Product Images
