Compact programmable logic controller (PLC) with 6 digital inputs and 4 relay outputs. Features an LCD display, SPDT output configuration, and a 4.5A output current rating. Operates on 100-240V AC supply voltage and is rated for 15A max current. Mountable via surface, DIN rail, or chassis. Compliant with RoHS and UL, CSA, CE, cURus approvals.
PackageModule
Storage56mm
MountingSurface Mount, DIN Rail, Chassis Mount
Quick Jump:
Technical Specifications
Omron ZEN-10C1AR-A-V2 technical specifications.
General
| Approvals | UL, CSA, CE, cURus |
| Package/Case | Module |
| Depth | 56mm |
| Display Type | LCD |
| Lead Free | Lead Free |
| Length | 70mm |
| Manufacturer Series | ZEN |
| Max Current Rating | 15A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount, DIN Rail, Chassis Mount |
| Number of Inputs | 6 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 240V |
| Output Current | 4.5A |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ZEN V2 |
| Size | 56mm |
| Termination | Terminal Block |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 240V |
| Weight | 0.662lb |
| Width | 90mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron ZEN-10C1AR-A-V2 Datasheet
Download the complete datasheet for Omron ZEN-10C1AR-A-V2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

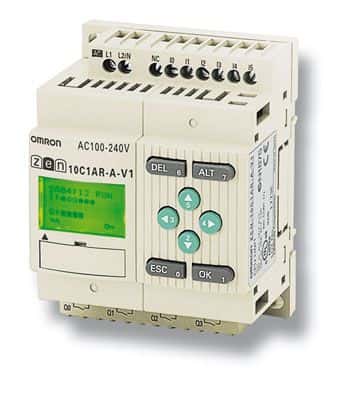

Product Images
