Compact programmable logic controller module featuring 6 analog inputs and 4 relay outputs. Operates on a 24V supply voltage with a maximum output current of 30A. This unit offers a 56mm depth, 70mm length, and 90mm width, with an integrated LCD display. Mounting options include surface mount, DIN rail, and chassis mount. Rated IP20, it operates within a temperature range of 0°C to 55°C.
PackageModule
Storage56mm
MountingSurface Mount, DIN Rail, Chassis Mount
Quick Jump:
Technical Specifications
Omron ZEN-10C1DR-D-V2 technical specifications.
General
Package/Case
Module
Depth
56mm
Display Type
LCD
Input Type
ANALOG
Lead Free
Lead Free
Length
70mm
Manufacturer Series
ZEN
Max Operating Temperature
55°C
Min Operating Temperature
0°C
Mount
Surface Mount, DIN Rail, Chassis Mount
Number of Inputs
6
Number of Outputs
4
Operating Supply Voltage
24V
Output Current
30A
Output Type
RELAY
Package Quantity
1
Packaging
Bulk
Ratings
IP20
Reach SVHC Compliant
Unknown
Series
ZEN V2
Size
56mm
Weight
0.662lb
Width
90mm
Compliance
RoHS
Compliant
Datasheet
Omron ZEN-10C1DR-D-V2 Datasheet
Download the complete datasheet for Omron ZEN-10C1DR-D-V2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

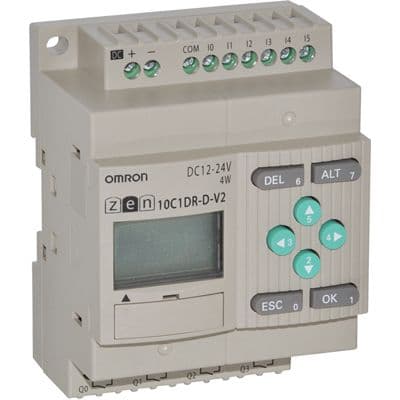

Product Images
