Technical Specifications

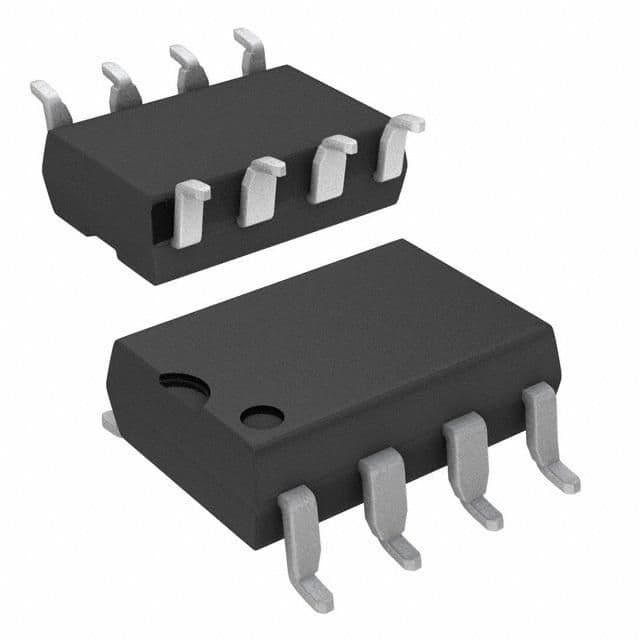

Onsemi 6N135SDM technical specifications.
General
Package/Case
SMD/SMT
Contact Plating
Tin, Matte
Current Transfer Ratio
38%
Data Rate
1Mbps
Fall Time
1.5us
Forward Current
25mA
Input Type
DC
Max Collector Current
8mA
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
20V
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Channels
1
Output Current per Channel
8mA
Output Voltage
20V
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Weight
0.72g
Compliance
RoHS
Compliant
