Frequency150MHz
PackageSOT-23
Current Rating-100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi BC857-B-MTF technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
-50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Saturation Voltage
-650mV
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
650mV
Contact Plating
Tin, Matte
Current Rating
-100mA
Emitter Base Voltage (VEBO)
-5V
Frequency
150MHz
Height
0.97mm
hFE Min
110
Lead Free
Lead Free
Length
2.9mm
Max Collector Current
100mA
Max Frequency
150MHz
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
310mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
310mW
Transition Frequency
150MHz
DC Rated Voltage
-45V
Weight
0.03g
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Onsemi BC857-B-MTF Datasheet
Download the complete datasheet for Onsemi BC857-B-MTF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

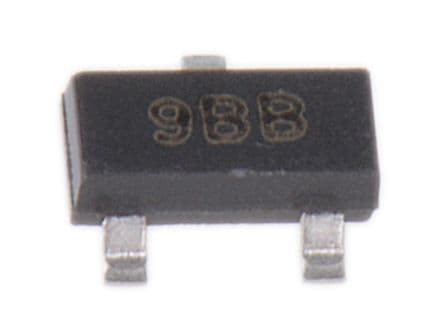

Product Images
