General purpose phototransistor optocoupler, featuring 5kV isolation voltage and a 4-pin DIP package for through-hole mounting. Delivers 50mA forward and output current with a maximum collector-emitter voltage of 200mV and a current transfer ratio of 600%. Operates across a wide temperature range from -55°C to 110°C, with a maximum power dissipation of 200mW. This RoHS compliant component is supplied in a 2000-unit box.
PackageDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Onsemi FOD817 technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
200mV
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Height
4.4mm
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
2000
Packaging
Box
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
RoHS Compliant
Yes
Weight
0.408g
Compliance
RoHS
Compliant
Datasheet
Onsemi FOD817 Datasheet
Download the complete datasheet for Onsemi FOD817 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

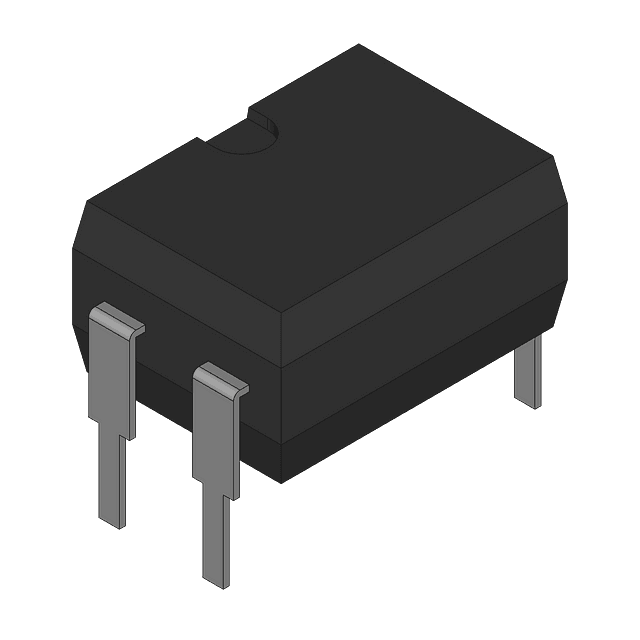

Product Images
