1-channel DC-input optocoupler with transistor output, featuring a 5kV isolation voltage and a 200mV collector-emitter saturation voltage. This surface-mount device offers a 160% current transfer ratio and a maximum collector current of 50mA. Operating across a -55°C to 110°C temperature range, it is packaged in tape and reel.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Onsemi FOD817A3SD technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
200mV
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
160%
Fall Time
18000ns
Forward Current
50mA
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage (DC)
6V
RoHS Compliant
Yes
Weight
0g
Compliance
RoHS
Compliant
Datasheet
Onsemi FOD817A3SD Datasheet
Download the complete datasheet for Onsemi FOD817A3SD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

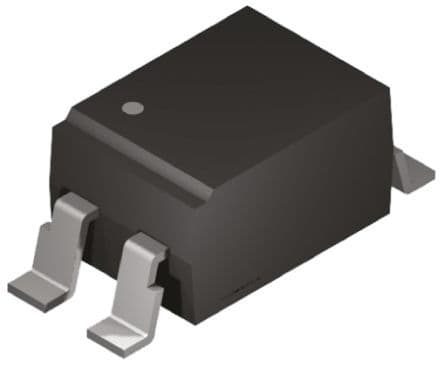

Product Images
