General purpose phototransistor optocoupler featuring a 3.75kV isolation voltage and 1200% current transfer ratio. This surface mount device offers a 400mV collector-emitter saturation voltage and a maximum collector current of 80mA. Operating within a -40°C to 110°C temperature range, it is packaged in a 4-pin full pitch mini-flat SMD/SMT case. The component supports a maximum forward current of 50mA and a maximum output voltage of 80V.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi FODM124 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
400mV
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
1200%
Fall Time
3us
Forward Current
50mA
Height
2.4mm
Input Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Isolation Voltage-Max
3.75kV
Lead Free
Lead Free
Max Collector Current
80mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
80mA
Output Voltage
80V
Package Quantity
3000
Packaging
Box
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage
6V
RoHS Compliant
Yes
Weight
0.155g
Compliance
RoHS
Compliant
Datasheet
Onsemi FODM124 Datasheet
Download the complete datasheet for Onsemi FODM124 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

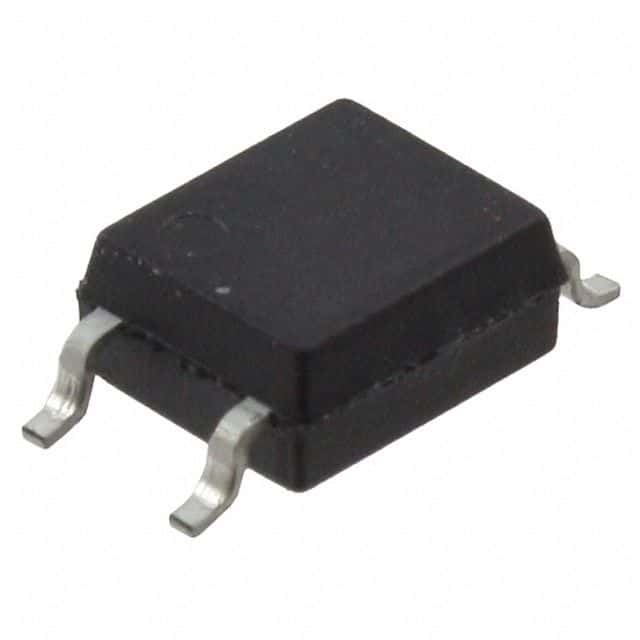

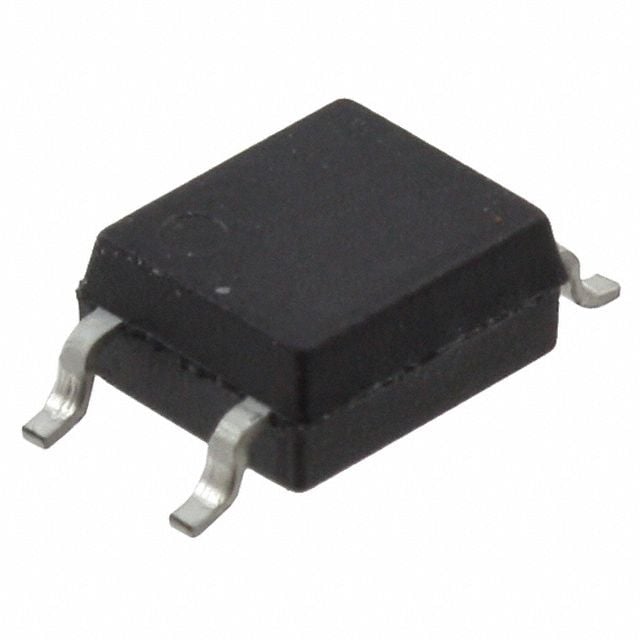

Product Images
