General purpose optocoupler featuring a 5kV isolation voltage and a 70V collector-emitter voltage. This through-hole mounted device offers a 600% current transfer ratio and a 50mA maximum output current. Operating across a wide temperature range from -55°C to 100°C, it includes a 200mV collector-emitter saturation voltage and 200mW power dissipation. The component is RoHS compliant and packaged in a PDIP for efficient integration.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Onsemi H11A817300 technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
2000
Packaging
Rail/Tube
Power Dissipation
200mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Series
H11A817
Compliance
RoHS
Compliant
Datasheet
Onsemi H11A817300 Datasheet
Download the complete datasheet for Onsemi H11A817300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

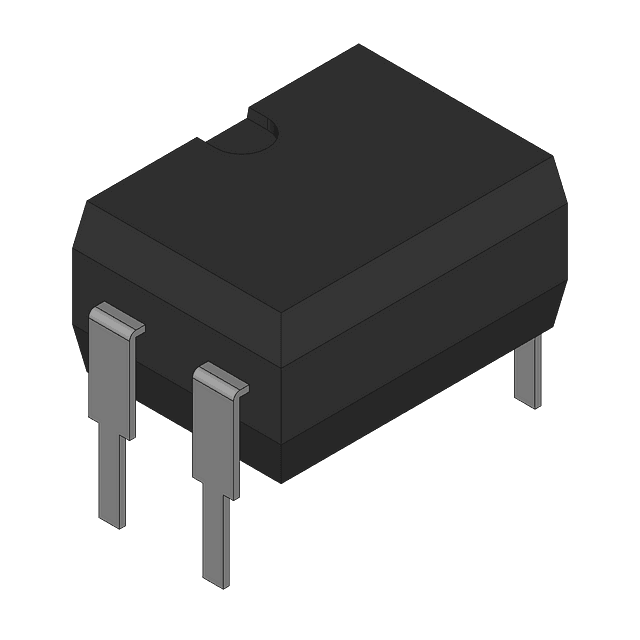

Product Images
