General purpose optocoupler featuring 5kV isolation voltage and a transistor output. This component offers a 70V collector-emitter voltage and 50mA maximum collector current. With a 300% current transfer ratio and 200mV collector-emitter saturation voltage, it is suitable for through-hole mounting in a PDIP package. Operating across a -55°C to 100°C temperature range, this RoHS compliant device provides reliable AC input isolation.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Onsemi H11AA814W technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 300% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Input Type | AC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 200mW |
| RoHS Compliant | Yes |
| Series | H11AA814 |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi H11AA814W Datasheet
Download the complete datasheet for Onsemi H11AA814W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

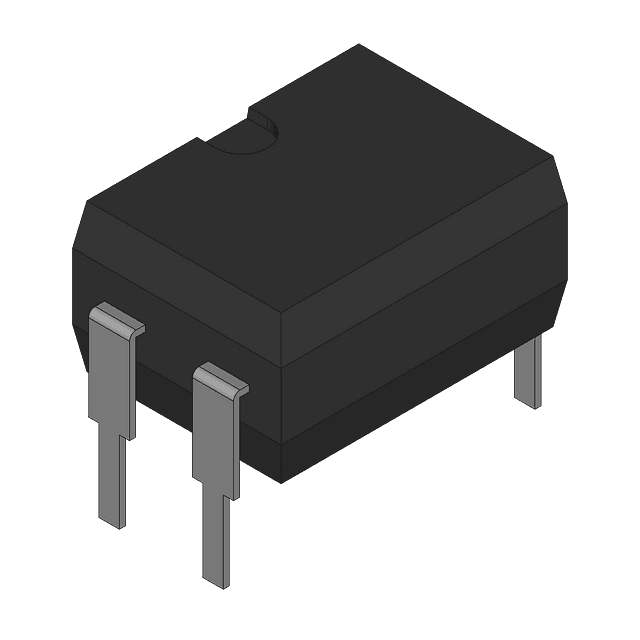

Product Images
