Single-channel, transistor output optocoupler in an 8-pin SOIC package for surface mounting. Features a 1Mbps data rate, 2.5kV isolation voltage, and 30% current transfer ratio. Operates with a 16mA input current and provides up to 8mA output current. Designed for general optoelectronic applications with a maximum power dissipation of 100mW and a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Onsemi HCPL0501 technical specifications.
General
| Package/Case | SOIC |
| Current Transfer Ratio | 30% |
| Data Rate | 1Mbps |
| Fall Time | 0.8us |
| Forward Current | 25mA |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 8mA |
| Max Input Current | 25mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 20V |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 8mA |
| Output Current per Channel | 8mA |
| Output Type | Phototransistor |
| Output Voltage | 20V |
| Packaging | Rail/Tube |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 30V |
| Weight | 0.252g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HCPL0501 Datasheet
Download the complete datasheet for Onsemi HCPL0501 to view detailed technical specifications.
No datasheet is available for this part.

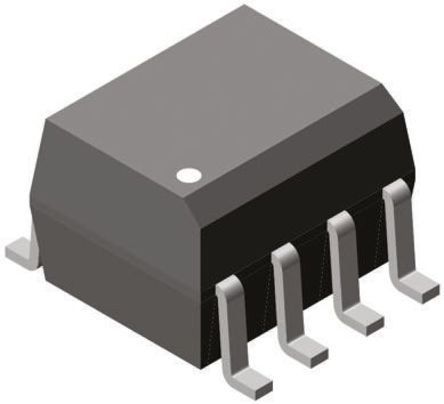

Product Images
