1-channel DC input transistor output optocoupler in a 4-pin Mini-Flat SOIC package. Features 3.75kV isolation voltage, 600% current transfer ratio, and 400mV collector-emitter saturation voltage. Maximum collector current is 50mA with a maximum output voltage of 80V. Operates from -55°C to 100°C, with 150mW power dissipation. Surface mountable and supplied on tape and reel.
PackageSOIC
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Onsemi HMHA281R2 technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 600% |
| Fall Time | 3us |
| Forward Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 80V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
| Weight | 0.12g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi HMHA281R2 Datasheet
Download the complete datasheet for Onsemi HMHA281R2 to view detailed technical specifications.
No datasheet is available for this part.

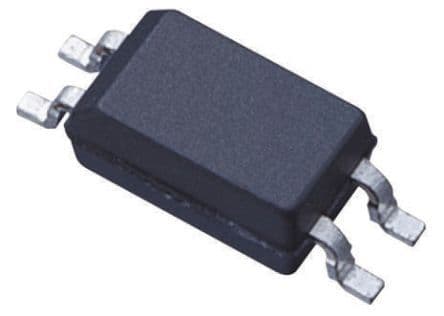

Product Images
