PackageSMD/SMT
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Onsemi QEB363ZR technical specifications.
General
Package/Case
SMD/SMT
Forward Current
50mA
Height
3mm
Length
2.7mm
Lens Style
Circular, Diffused, Colorless
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
1
Orientation
Top View
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
100mW
Radiation Hardening
No
Reverse Voltage
5V
Reverse Voltage (DC)
5V
RoHS Compliant
Yes
Touchscreen
Infrared (IR)
Viewing Angle
24°
Wavelength
940nm
Weight
0.0981g
Width
2.2mm
Compliance
RoHS
Compliant
Datasheet
Onsemi QEB363ZR Datasheet
Download the complete datasheet for Onsemi QEB363ZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

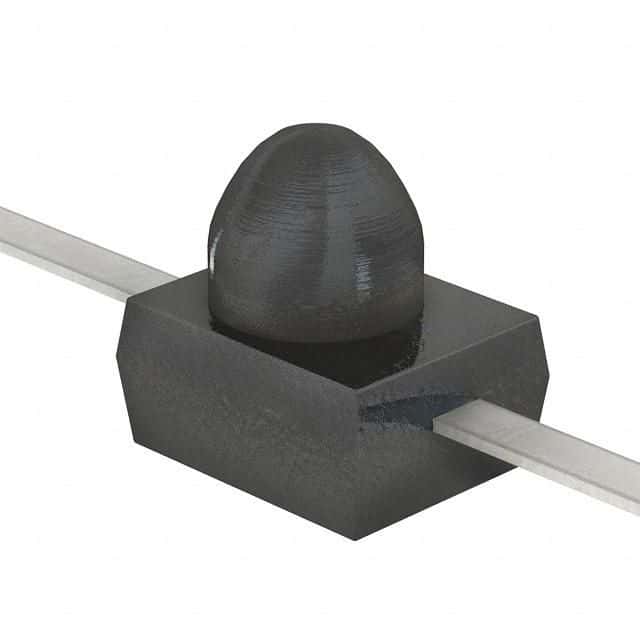

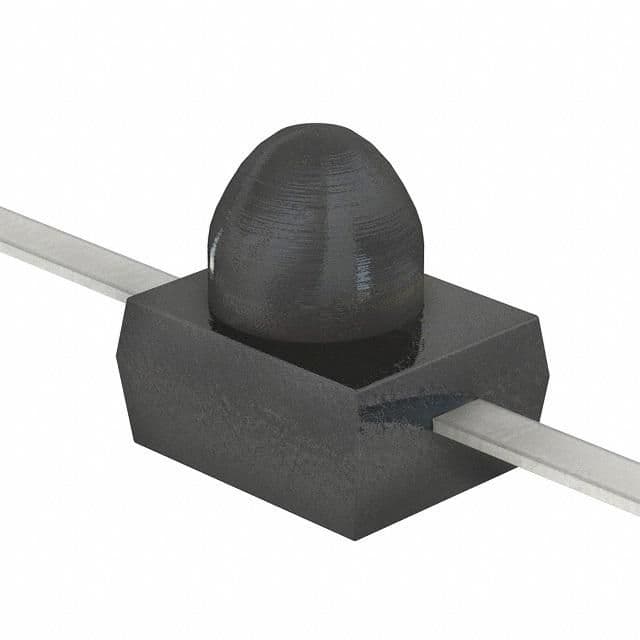

Product Images
