PackageSOT-23-6
Current Rating-4A
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Onsemi SI3457DV technical specifications.
General
Package/Case
SOT-23-6
Continuous Drain Current (ID)
4A
Current Rating
-4A
Drain to Source Breakdown Voltage
-30V
Drain to Source Resistance
50mR
Drain to Source Voltage (Vdss)
30V
Drain-source On Resistance-Max
50MR
Element Configuration
Single
Fall Time
12ns
Gate to Source Voltage (Vgs)
25V
Input Capacitance
470pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
800mW
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
1.6W
Radiation Hardening
No
Rds On Max
50mR
RoHS Compliant
Yes
Series
PowerTrench®
Turn-Off Delay Time
16ns
Turn-On Delay Time
7ns
DC Rated Voltage
-30V
Weight
0.036g
Compliance
RoHS
Compliant
Datasheet
Onsemi SI3457DV Datasheet
Download the complete datasheet for Onsemi SI3457DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

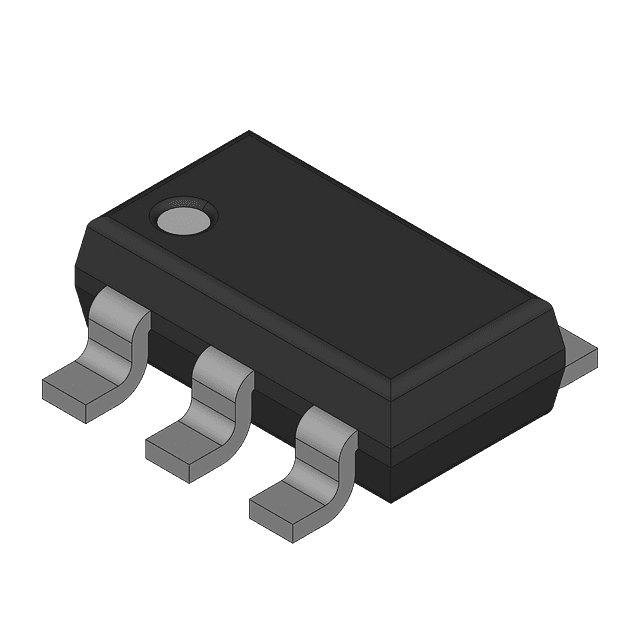

Product Images
