Onsemi
SMBJ5.0A
TAIWAN SEMICONDUCTOR - SMBJ5.0A - Diode TVS, TVS, Série Transil SMBJ, Unidirectionelle, 5 V, 9.2 V, SMD, 2 Broche(s)
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi SMBJ5.0A technical specifications.
General
Clamping Voltage
9.2V
Direction
Unidirectional
Element Configuration
Single
Min Breakdown Voltage
6.4V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
800uA
Mount
Surface Mount
Peak Pulse Current
65.2A
Peak Pulse Power
600W
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Compliance
RoHS
Not Compliant
Datasheet
Onsemi SMBJ5.0A Datasheet
Download the complete datasheet for Onsemi SMBJ5.0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

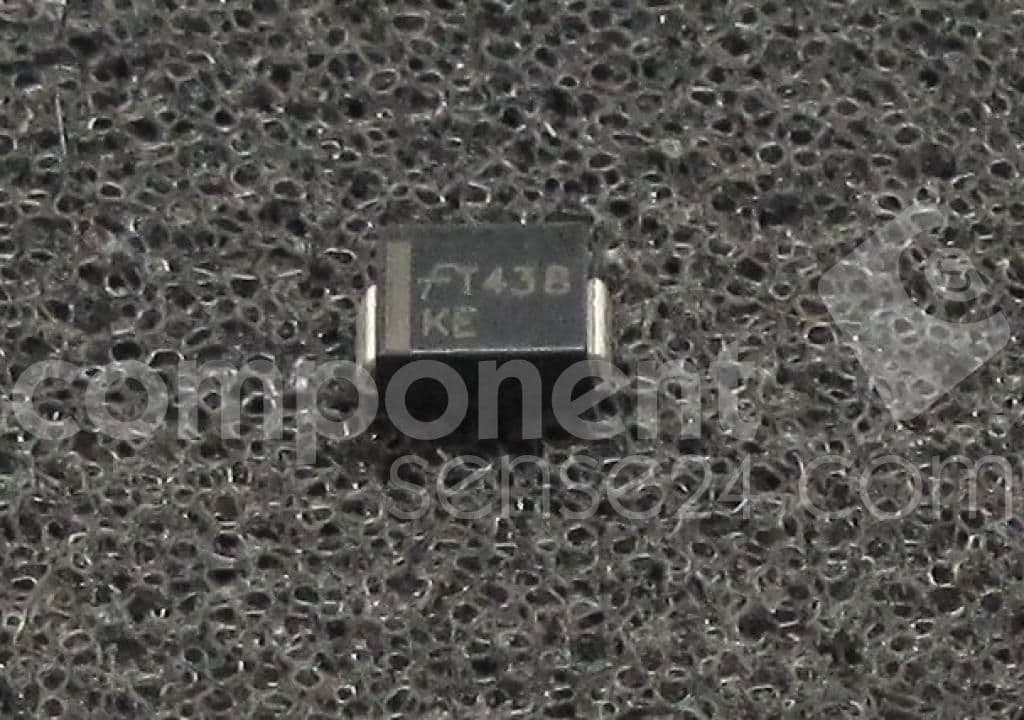

Product Images
