PackageModule
Current Rating170mA
MountingPCB, Snap in
Quick Jump:
Technical Specifications
Opto 22 SNAP-AIV-4 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
Module
Current Rating
170mA
Depth
90.17mm
Input Current
170mA
Length
82.55mm
Manufacturer Series
SNAP
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
PCB, Snap in
Number of Channels
4
Number of I/Os
4
Number of Inputs
4
Operating Supply Voltage
5V
Reach SVHC Compliant
No
DC Rated Voltage
5V
Width
18.29mm
Compliance
RoHS
Compliant
Datasheet
Opto 22 SNAP-AIV-4 Datasheet
Download the complete datasheet for Opto 22 SNAP-AIV-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

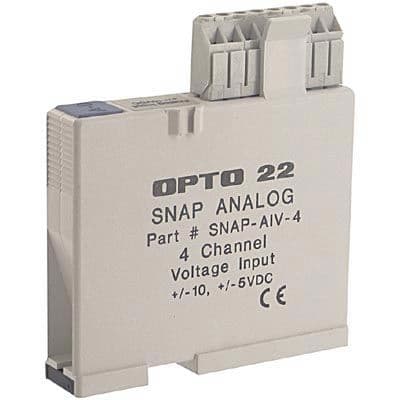

Product Images
