NPN phototransistor with 880nm wavelength, housed in a TO-18 package with a domed lens. Features a 50V collector-emitter breakdown voltage and a maximum collector current of 50mA. Operates within a temperature range of -40°C to 125°C, with a power dissipation of 220mW. This through-hole mounted component offers a 15µs fall time and a 80° viewing angle, with tin-matte contact plating.
PackageTO-18
MountingThrough Hole
PolarityNPN
Power220mW
Quick Jump:
Technical Specifications
Osram BPX38-4 technical specifications.
General
Package/Case
TO-18
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
50V
Contact Plating
Tin, Matte
Diameter
4.8mm
Fall Time
15us
Height
5.5mm
Lens Style
Domed
Max Breakdown Voltage
50V
Max Collector Current
50mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Orientation
Top View
Package Material
SILICON
Package Quantity
1000
Packaging
Bulk
Polarity
NPN
Power Dissipation
220mW
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
80°
Wavelength
880nm
Compliance
RoHS
Compliant
Datasheet
Osram BPX38-4 Datasheet
Download the complete datasheet for Osram BPX38-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

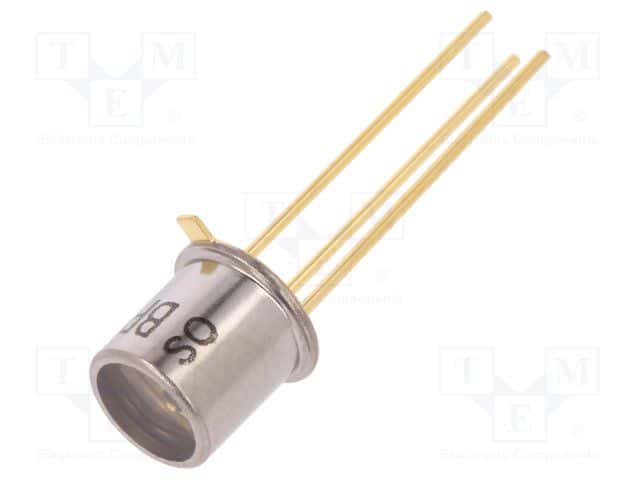

Product Images
