NPN & Darlington phototransistor with a 900nm wavelength and 0.59A/W responsivity. Features a 5ns response time and 50V maximum reverse voltage. This through-hole component is housed in a radial, 2-pin T-1 3/4 package, operating from -40°C to 100°C with 150mW power dissipation. Supplied in tape and reel packaging.
PackageRadial
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Osram SFH 213 FA technical specifications.
General
| Package/Case | Radial |
| Diode Type | PIN |
| Fall Time | 5ns |
| Forward Current | 80mA |
| Height | 9mm |
| Length | 5.9mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 50V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 5ns |
| Responsivity | 0.59A/W |
| Reverse Breakdown Voltage | 50V |
| Reverse Voltage | 20V |
| RoHS Compliant | Yes |
| Viewing Angle | 20° |
| Wavelength | 900nm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH 213 FA Datasheet
Download the complete datasheet for Osram SFH 213 FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

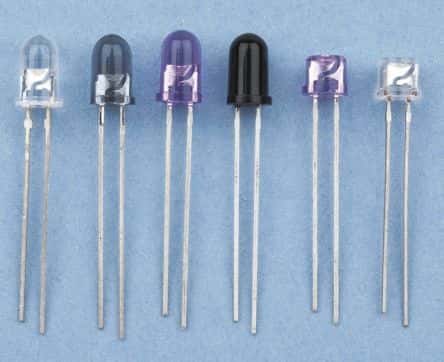

Product Images
