Technical Specifications
Osram SFH 235 FA technical specifications.
General
| Package/Case | Radial |
| Diode Type | PIN |
| Fall Time | 20ns |
| Forward Current | 100mA |
| Height | 7.2mm |
| Length | 5.1mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 150mW |
| Max Reverse Voltage (DC) | 32V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Response Time | 20ns |
| Responsivity | 0.63A/W |
| Reverse Breakdown Voltage | 32V |
| Reverse Voltage (DC) | 32V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 900nm |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH 235 FA Datasheet
Download the complete datasheet for Osram SFH 235 FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

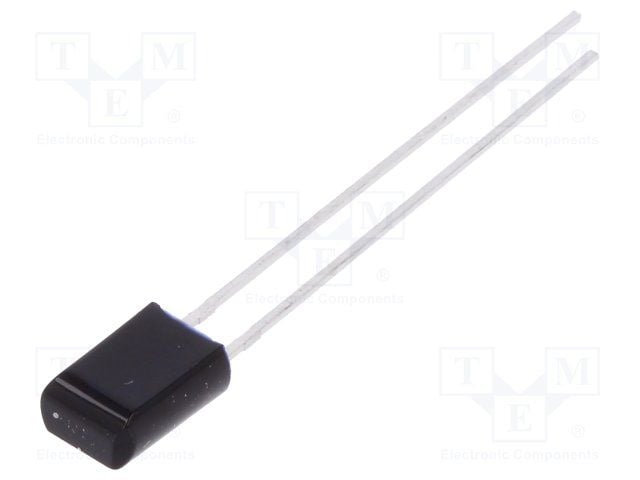

Product Images
