Technical Specifications
Osram SFH 4240-Z technical specifications.
General
| Package/Case | PLCC |
| Fall Time | 12ns |
| Forward Current | 100mA |
| Height | 2.1mm |
| Length | 3.4mm |
| Lens Style | Round, Flat, Circular |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Orientation | Top View |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | Power TOPLED® |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 120° |
| Wavelength | 950nm |
| Width | 2.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH 4240-Z Datasheet
Download the complete datasheet for Osram SFH 4240-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

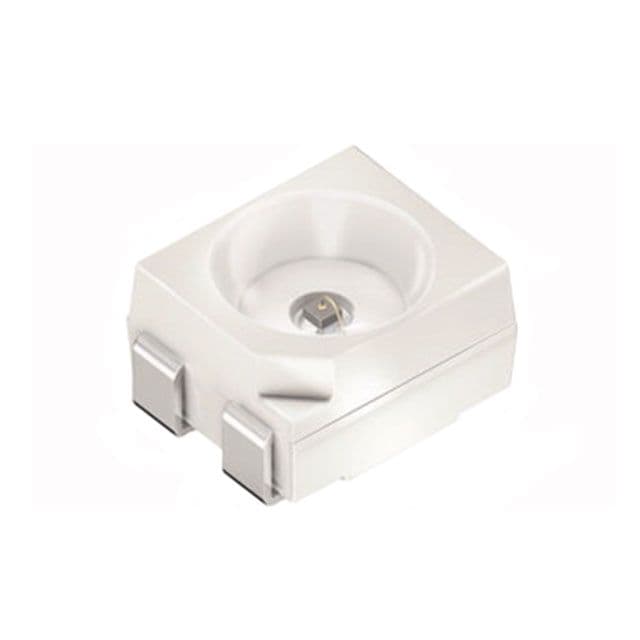

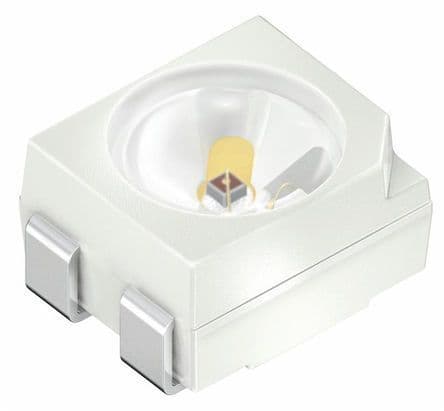

Product Images
