Osram SFH203PFA technical specifications.
General
Package/Case
Radial
Diode Type
PIN
Fall Time
5ns
Forward Current
80mA
Height
5mm
Lead Free
Lead Free
Length
5.9mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Reverse Voltage (DC)
50V
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
5ns
Responsivity
0.59A/W
Reverse Breakdown Voltage
50V
Reverse Voltage
50V
Viewing Angle
150°
Wavelength
900nm
Width
5.9mm
Compliance
RoHS
Compliant
Datasheet
Osram SFH203PFA Datasheet
Download the complete datasheet for Osram SFH203PFA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

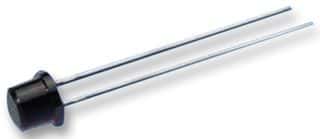

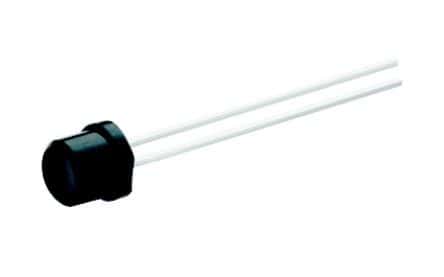

Product Images
