Technical Specifications
Osram SFH2430-Z technical specifications.
General
Package/Case
SMD/SMT
Diode Type
PIN
Fall Time
200000ns
Forward Current
100mA
Height
1.2mm
Length
4.5mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
150mW
Max Reverse Voltage (DC)
6V
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
150mW
Radiation Hardening
No
Response Time
200us
Responsivity
0.17A/W
Reverse Breakdown Voltage
6V
Reverse Voltage (DC)
6V
RoHS Compliant
Yes
Viewing Angle
120°
Wavelength
570nm
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Osram SFH2430-Z Datasheet
Download the complete datasheet for Osram SFH2430-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

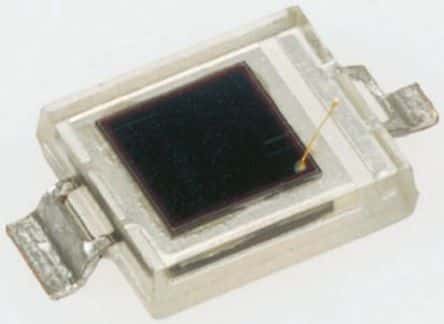

Product Images
