Otto Engineering
T7-211E5
Switch Toggle (ON) OFF (ON) DPDT Bat Lever Quick Conn 16A 115VAC 28VDC Panel Mount with Threads
Voltage Rating115V
Current Rating16A
MountingBushing, Panel
Quick Jump:
Technical Specifications
Otto Engineering T7-211E5 technical specifications.
General
Actuator Length
0.66inch
Actuator Material
Stainless Steel
Contact Current Rating
16A
Contact Material
Silver
Contact Plating
Gold
Current Rating
16A
Illumination Type
LED, Illuminated
Life (Hours)
25000Hour
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-30°C
Mount
Bushing, Panel
Packaging
Bulk
Ratings
IP68
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
T7
Termination
Screw
Throw Configuration
DPDT
Voltage Rating
115V
Voltage Rating (AC)
115V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Otto Engineering T7-211E5 Datasheet
Download the complete datasheet for Otto Engineering T7-211E5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

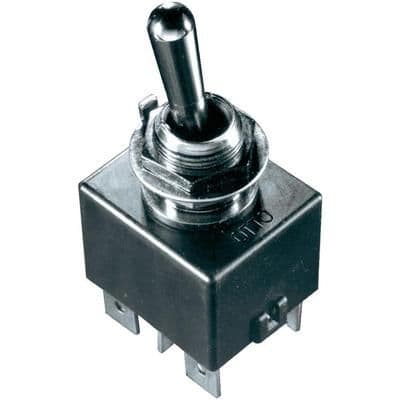

Product Images
