Voltage Rating115V
MountingPanel
Quick Jump:
Technical Specifications
Otto Engineering T9-CS2-27 technical specifications.
General
Actuator Length
0.69inch
Actuator Material
Stainless Steel
Contact Current Rating
11A
Contact Material
Silver
Illumination Type
Illuminated
Max Operating Temperature
71°C
Mechanical Life
40000Cycles
Min Operating Temperature
-65°C
Mount
Panel
Ratings
IP68
Reach SVHC Compliant
Unknown
Termination
Screw
Throw Configuration
DPDT
Voltage Rating
115V
Compliance
RoHS
Compliant
Datasheet
Otto Engineering T9-CS2-27 Datasheet
Download the complete datasheet for Otto Engineering T9-CS2-27 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

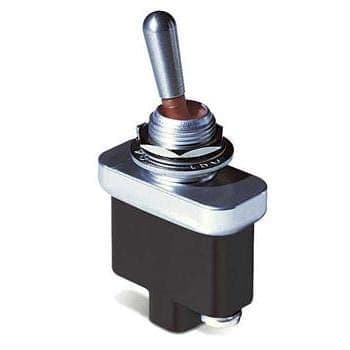

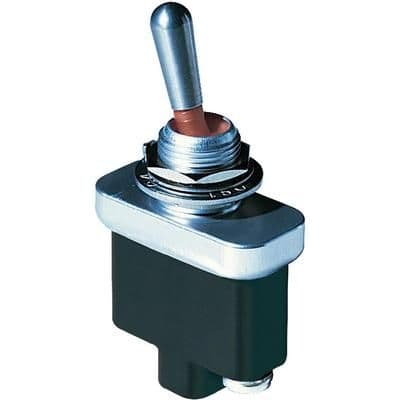

Product Images
