Technical Specifications
Panasonic 2SB1462J0L technical specifications.
General
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 500mV |
| Current Rating | -100mA |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Transition Frequency | 80MHz |
| DC Rated Voltage | -50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 2SB1462J0L Datasheet
Download the complete datasheet for Panasonic 2SB1462J0L to view detailed technical specifications.
No datasheet is available for this part.

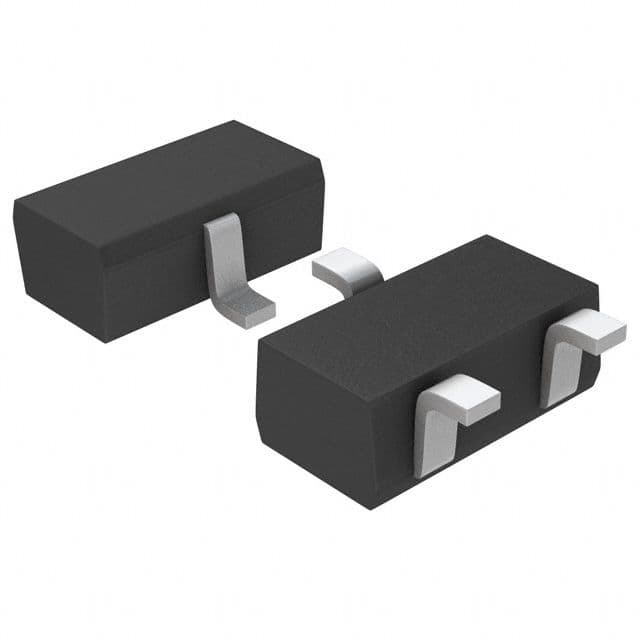

Product Images
