Polymer tantalum capacitor, 330µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features 18mΩ ESR, 2.8A ripple current, and a maximum operating temperature of 105°C. Surface mount device with 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 2.8mm. Packaged on tape and reel, this RoHS compliant component offers general-purpose functionality.
Package2917
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic 6TPE330MIL technical specifications.
General
Capacitance
330uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
18mR
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Leakage Current
207.9uA
Length
7.3mm
Material
Polymer
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.8A
RoHS Compliant
Yes
Series
POSCAP™ TPE
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic 6TPE330MIL Datasheet
Download the complete datasheet for Panasonic 6TPE330MIL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

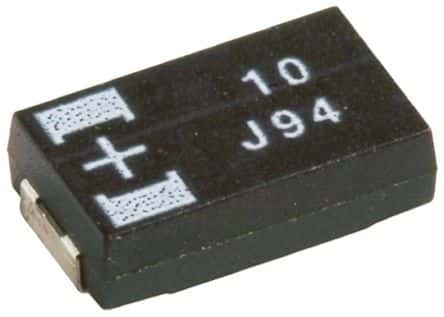

Product Images
