Polymer Tantalum Capacitor, 470µF capacitance, 6.3V DC voltage rating, and 20% tolerance. Features low ESR of 18mΩ and ripple current capability of 3.5A. Encased in a 7343-40 (2917) SMD package with dimensions of 7.3mm (L) x 4.3mm (W) x 3.8mm (H). Operates from -55°C to 105°C, suitable for general-purpose applications. Packaged on tape and reel for surface mount assembly.
Package2917
Voltage6.3V
Capacitance470uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic 6TPE470MI technical specifications.
General
Capacitance
470uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
15%
ESR (Equivalent Series Resistance)
18mR
Features
General Purpose
Height
3.8mm
Lead Free
Lead Free
Leakage Current
296.1uA
Length
7.3mm
Life (Hours)
2000Hour
Material
Polymer
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
3.5A
RoHS Compliant
No
Series
POSCAP™ TPE
Termination
SMD/SMT
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
4.3mm
Compliance
RoHS
Not CompliantNo
Datasheet
Panasonic 6TPE470MI Datasheet
Download the complete datasheet for Panasonic 6TPE470MI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

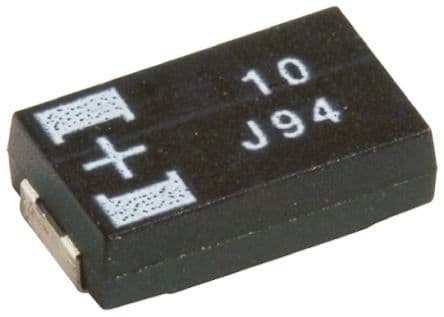

Product Images
