Technical Specifications
Panasonic ABJ161040 technical specifications.
General
| Actuator Type | PLUNGER |
| Package/Case | 125 |
| Contact Current Rating | 1A |
| Contact Material | Silver |
| Current Rating | 1A |
| Electrical Life | 30000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Operating Force | 125gf |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ABJ |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Width | 13.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ABJ161040 Datasheet
Download the complete datasheet for Panasonic ABJ161040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

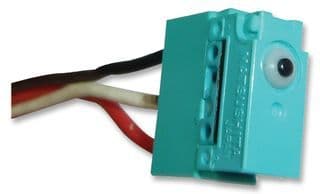

Product Images
