Technical Specifications
Panasonic ABJ361841 technical specifications.
General
| Actuator Type | LEAF LEVER |
| Package/Case | 125 |
| Contact Current Rating | 100mA |
| Contact Material | Gold, Silver |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw, Wire |
| Operating Force | 100gf |
| Orientation | Straight |
| Packaging | Case |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | ABJ |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ABJ361841 Datasheet
Download the complete datasheet for Panasonic ABJ361841 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

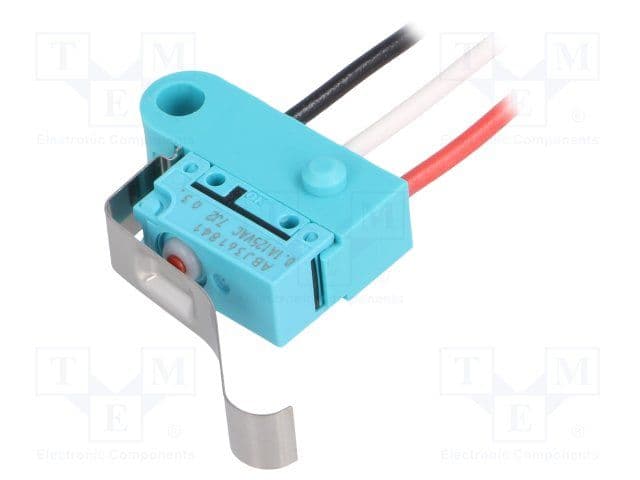

Product Images
