Technical Specifications
Panasonic AH146261-A technical specifications.
General
| Actuator Type | HINGE LEVER |
| Contact Current Rating | 100mA |
| Contact Material | Gold, Silver |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operating Force | 0.49N |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SPDT, SPST |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AH146261-A Datasheet
Download the complete datasheet for Panasonic AH146261-A to view detailed technical specifications.
No datasheet is available for this part.

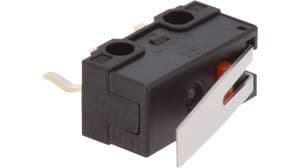

Product Images
