Analog circuit IC with infrared sensing capability, featuring a TO-5 through-hole mount package. Operates within a 3V to 6V DC supply voltage range, consuming 170µA operating current. Offers a digital output with a typical output voltage of -500mV and 100µA output current. Designed for operation between -20°C and 60°C, this lead-free and RoHS compliant component boasts a 2m sensing distance.
PackageTO-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AMN32112 technical specifications.
General
Package/Case
TO-5
Height
15.2mm
Lead Free
Lead Free
Length
11mm
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Max Supply Voltage (DC)
6V
Min Supply Voltage (DC)
3V
Max Supply Voltage
6V
Min Supply Voltage
3V
Mount
Through Hole
Operating Supply Current
170uA
Operating Supply Voltage
5V
Output Current
100uA
Output Type
Digital, DIGITAL OUTPUT
Output Voltage
-500mV
Package Quantity
50
Packaging
Box
RoHS Compliant
Yes
Sensing Distance
2m
Sensing Method
Infrared (IR)
Series
NaPiOn™
Width
11mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AMN32112 Datasheet
Download the complete datasheet for Panasonic AMN32112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

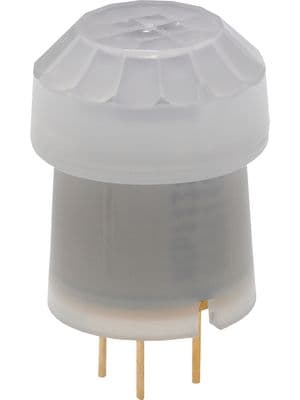

Product Images
