Technical Specifications
Panasonic AMS302 technical specifications.
General
Package/Case
Radial
Fall Time
8.5ms
Height
5.3mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Power Dissipation
40mW
Max Supply Voltage (DC)
6V
Min Supply Voltage (DC)
1.5V
Mount
Through Hole
Operating Supply Voltage
6V
Output Current
260uA
Output Type
Analog
Package Quantity
500
Packaging
Tape and Reel
Power Dissipation
40mW
Reach SVHC Compliant
Unknown
Reverse Voltage
6V
RoHS Compliant
Yes
Sensing Method
Optical
Wavelength
580nm
Compliance
RoHS
Compliant
Datasheet
Panasonic AMS302 Datasheet
Download the complete datasheet for Panasonic AMS302 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

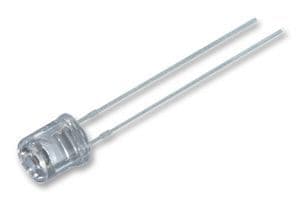

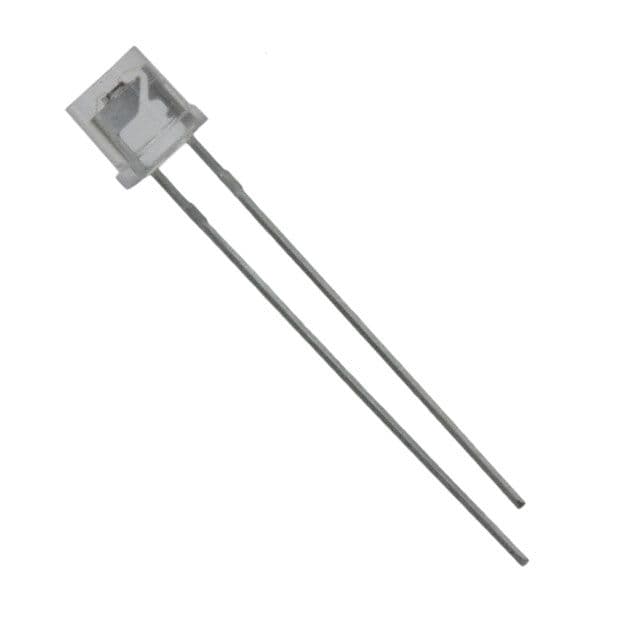

Product Images
