AC & DC Output Solid State Relay (SSR) with DPST configuration. Features a 100V maximum output voltage and 300mA maximum load current. Operates with a DC input type requiring 50mA maximum input current and 900µA forward current. Offers 1.5kV isolation voltage and a maximum operating temperature of 85°C. Packaged in a DIP case with through-hole mounting and PC pin termination.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQW-215 technical specifications.
General
| Package/Case | DIP |
| Forward Current | 900uA |
| Height | 3.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 9.78mm |
| Load Current | 300mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Output Voltage | 100V |
| Mount | Through Hole |
| On-state Resistance-Max | 4R |
| Output Current | 300mA |
| Output Voltage | 100V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQW |
| Termination | PC Pin |
| Test Voltage | 5kV |
| Throw Configuration | DPST |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQW-215 Datasheet
Download the complete datasheet for Panasonic AQW-215 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

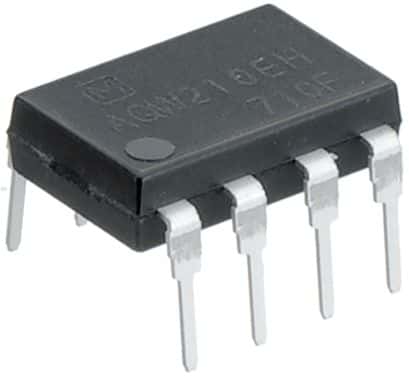

Product Images
