AC & DC Output Solid State Relay (SSR) with a 400V maximum output voltage and 120mA load current. Features DC input type, 5kV isolation voltage, and a 120mA output current rating. This DIP-packaged relay offers a 2ms turn-on delay and 35 Ohms on-state resistance. RoHS compliant and lead-free, it operates within a -40°C to 85°C temperature range.
PackageDIP
Current Rating120mA
Quick Jump:
Technical Specifications
Panasonic AQY-214EH technical specifications.
General
| Approvals | cULus |
| Package/Case | DIP |
| Current Rating | 120mA |
| Depth | 6.4mm |
| Forward Current | 1.2mA |
| Height | 3.2mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 4.78mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Max Power Dissipation | 550mW |
| On-State Resistance | 35R |
| On-state Resistance-Max | 35R |
| Output Current | 120mA |
| Output Voltage | 400V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | PC Pin |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Turn-On Delay Time | 2ms |
| Width | 4.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY-214EH Datasheet
Download the complete datasheet for Panasonic AQY-214EH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

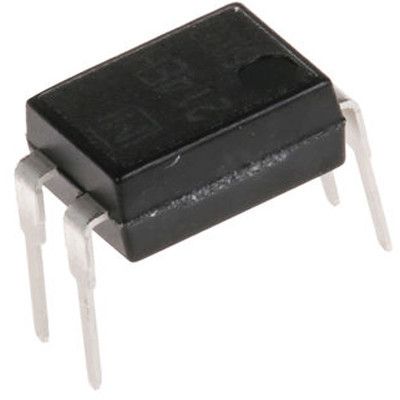

Product Images
