AC & DC Output Solid State Relay (SSR) in SOP package. Features 40V maximum output voltage and 120mA maximum output current. Requires 900µA forward current for activation with a 1.5V maximum input voltage. Offers 1.5kV isolation voltage and operates within a -40°C to 85°C temperature range. Surface mountable with gull wing termination, this RoHS compliant component is supplied on tape and reel.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY-221N2SX technical specifications.
General
Package/Case
SOP
Forward Current
900uA
Height
2mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
4.4mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
40V
Max Power Dissipation
350mW
Mount
Surface Mount
On-state Resistance-Max
12.5R
Output Current
120mA
Output Voltage
40V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PhotoMOS™ AQY
Termination
Gull Wing
Throw Configuration
SPST
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY-221N2SX Datasheet
Download the complete datasheet for Panasonic AQY-221N2SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

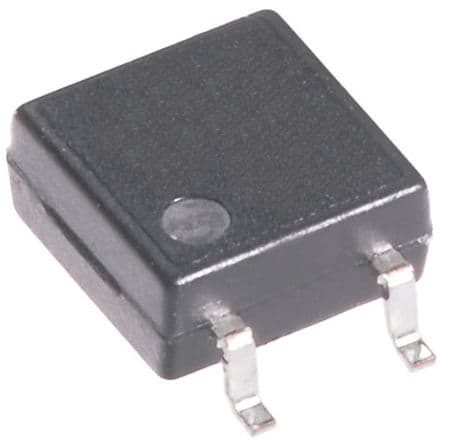

Product Images
