AC & DC Output Solid State Relay (SSR) with 1A max output current and 60V max output voltage. Features DC input with a 50mA input current and 1.5V max input voltage. This 1-channel SPST relay offers 1.3ms turn-on and 0.1ms turn-off delay times, with a 700mR max on-state resistance. Packaged in a 4-pin SOP for surface mounting, it operates within a -40°C to 85°C temperature range and provides 1.5kV isolation. RoHS compliant and lead-free.
PackageSOP
Capacitance1.5pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY212GSX technical specifications.
General
Capacitance
1.5pF
Package/Case
SOP
Forward Current
1.1mA
Height
2.1mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
4.4mm
Load Current
1A
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
60V
Mount
Surface Mount
Number of Channels
1
On-state Resistance-Max
700mR
Output Current
1A
Output Voltage
60V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PhotoMOS™ AQY
Termination
Gull Wing
Throw Configuration
SPST
Turn-Off Delay Time
0.1ms
Turn-On Delay Time
1.3ms
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY212GSX Datasheet
Download the complete datasheet for Panasonic AQY212GSX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

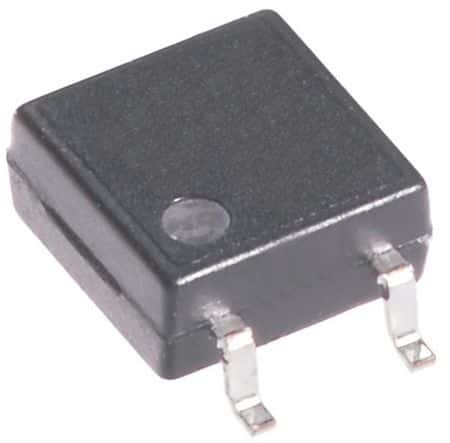

Product Images
