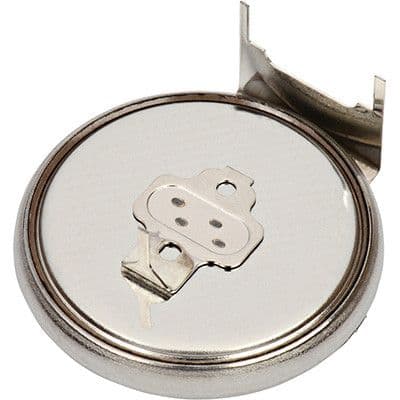

3V primary lithium battery with 255mAh capacity. Features a 23mm diameter and 23mm length, weighing 3.2g. Operates across a wide temperature range from -30°C to 80°C. Equipped with PC pin terminations for through-hole mounting. Lead-free and RoHS compliant, supplied in a 20-piece package.
Storage255mAh
Voltage Rating3V
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic BR-2330A/GAN technical specifications.
General
Battery Type
PRIMARY
Capacity
255mAh
Depth
23mm
Lead Free
Lead Free
Length
23mm
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Through Hole
Output Voltage
3V
Package Quantity
20
RoHS Compliant
Yes
Series
BR2330
Termination
PC Pin
Voltage Rating
3V
Weight
3.2g
Compliance
RoHS
Compliant
Datasheet
Panasonic BR-2330A/GAN Datasheet
Download the complete datasheet for Panasonic BR-2330A/GAN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
